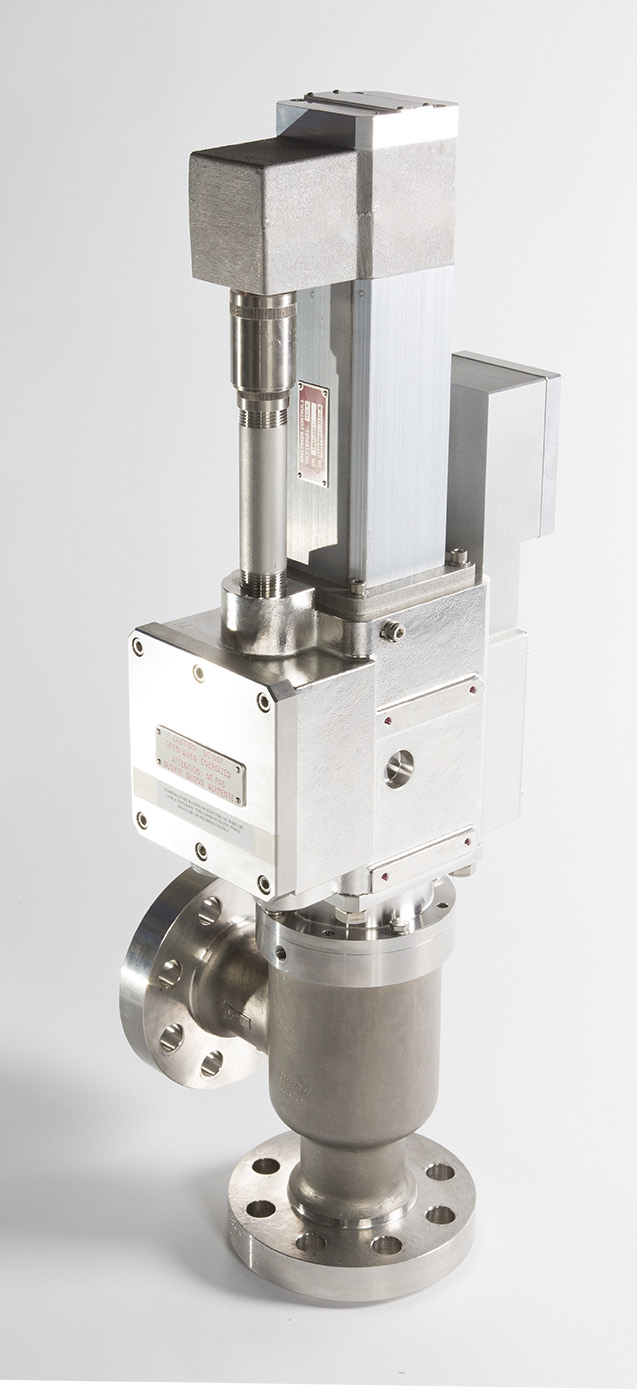

Meggitt Whittaker Gas Fuel Metering Valves

Fuel metering valves are the gas turbine’s throttle control. Industrial gas turbines generate power from the expansion of hot gases when fuel is burnt in the compressed air. The proportions of the fuel and air mixture decide how much power the gas turbine delivers. Accurate and consistent fuel metering is vital to a gas turbine’s efficiency and reliability.

Meggitt’s sleeve- and globe-style fuel metering valves deliver a super-fast, 100 millisecond full-stroke response time. Along with their exceptional flow and positional accuracy. Meggitt fuel metering valves can be operated and controlled with all major engine control systems (Speedtronic, Woodward, Allen Bradley etc.) to provide excellent fuel flow efficiency and improved emissions.

Originally developed for 20 – 60 megawatt aero-derivative gas turbine engines. The Meggitt product line has been expanded to include precision electric fuel metering valves for both Aero-Derivative and Heavy Duty type gas turbines.

Well known Original Equipment Manufacturers like GE (LM Aero-Derivative and Heavy Duty) and Rolls Royce (now Siemens) (RB211 and AVON) rely on Meggitt fuel metering valves to fuel their gas turbines.

Gas fuel and liquid fuel metering valves from Meggitt offer the highest possible accuracy and increased precision to ensure improved NOX and CO levels and decreased fuel consumption.

The latest generation metering valves metering valves are compliant with all relevant standards such as ATEX Zone 1 and 2, PED, UL and NEC Class 1 certified for reliable operation in hazardous and extreme environments.

C329465

Gas Fuel Metering Valve electro-hydraulic actuated. End of life. Ask for upgrade program.

download factsheet



C421895

Electromagnetically Actuated (EMA) Gas Metering Valve – 3″ flange – CE ATEX certified

download factsheet



C422485

Old design 2″ Gas Metering Valve. Rolls Royce part number RRE006818. Replaced by C521395.

download factsheet



C422845

Gas Fuel Metering Valve 2″ ATEX certified for use on aero derivative gas turbines

download factsheet

C422855

Old design 1,5″Gas Metering Valve. Rolls Royce part number RRE010169 Replaced by C521405

download factsheet



C520245

Upgraded ATEX certified Fuel Metering Valve with EMA technology and easy connect cables

download factsheet

C236385

One inch liquid fuel metering valve spool and sleeve style with Meggitt’s EMA technology

download factsheet



C236765

1,5 Inch Liquid Fuel Metering Valve spool and sleeve style with Meggitt EMA technology

download factsheet



C327735

Three Inch right angle fuel trim valve for use on DLE and SAC Industrial gas turbines.

download factsheet



Fuel Metering Valve Services

Please contact VBR Turbine Partners for the following services:

•Delivery of new valves
•Upgrades
•Test & Inspect
•Repair and overhaul services

In most cases a fixed price overhaul will set the clock back to new condition and let you valve operate for years ahead.
